Drawbar

Drawbars are used in tractors to mount trailer and other equipment. The both ends are threaded so that screws or clamps can be fitted tightly. We use best quality mild steel and cast iron sourced from trusted vendors to manufacture these drawbars. Tractor Drawbar is coated with a layer of paint or powder coating to give it a protection against corrosion. We make available this drawbar for clients in different sizes and specifications.

  • Material: Low carbon Steel, C45, Cast Iron.
  • Machining: Turning done on Lathe.
  • Finish: Powder coating or pain in various colours as per customer's requirement.
  • Drawbars are used to mount Trailers and farming equipment.

Clevis
Draw Bar ( 63x25 )

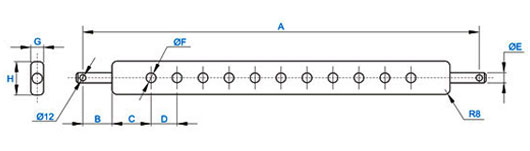

CODE H G Holes A B C D E F
LDB00 63 25 7 505 51 66.5 45 22 20
LDB01 63 25 7 770 50 105 76.66 22 22
LDB02 63 25 7 610 51 84.5 57 22 19
LDB03 63 25 7 610 51 84.5 57 22 22
LDB04 63 25 11 775 57 75 51 22 19
LDB05 63 25 11 775 57 75 51 22 22
LDB06 63 25 9 775 57 114 54 22 19
LDB07 63 25 11 766 53 60 54 22 20
Drawbar
Draw Bar ( 63x30 )
CODE H G Holes A B C D E F
LDB08 63 30 7 1003 60 181 80 28.5 25.4
LDB09 63 30 7 683 49 113 54 22 20
LDB10 63 30 9 758 49 114 54 22 20
LDB11 63 30 9 781 60 114 54 28.5 20
LDB12 63 30 7 962 60 181 80 28.5 28
LDB13 63 30 9 796 57.5 125 55 21.6 22.2
LDB14 63 30 9 800 70 113.3 54 28 22
LDB15 63 30 11 766 60 60 54 28 20
LDB16 63 30 11 945 60 114 60 28 22
LDB17 63 30 9 800 58 118 22 22 22
LDB18 63 30 9 800 126 51 70 28 22
LDB19 63 30 11 765 52 60 54 22 22
LDB20 63 30 11 781 60 60 54 28 22
LDB21 63 30 9 770 55 110 55 22 20
LDB22 63 30 9 770 55 110 55 28 20
LDB23 63 30 3 440 55 110 55 22 20
LDB24 63 30 11 766 53 60 54 22 20
LDB25 63 30 11 780 60 60 54 28 20
LDB26 63 30 3 440 57 110 54 22 19
LDB27 63 30 9 800 70 114 54 28 22
LDB28 63 30 11 810 60 75 54 28.5 20
LDB29 63 30 9 620 50 71 47.5 22 26
