Grease Nipples

We offer full range of Grease Nipples. We can also manufacture grease nipples as per Customer's Design And Specifications. Grease Nipples are manufactured to High Quality Standards from the highest grade materials. We are manufacturing Grease Fittings that are stronger, more durable and are easier to use.

  • Material: Low Carbon Steel, SAE12L14, Stainless Steel, Brass.
  • Finish: White / Yellow Trivalent Zinc Plating.
  • Standards: IS - 4009, DIN -71412, BSS -1486, JIS -B -1575, SAE - J -534.
  • Grease Nipples are used in Tractors, Automobiles, Machinery, Trailers & have many other applications as well.
Grease Nipples
GREASE NIPPLES
CODE Size Type
LGNIP01 M6X1 STRAIGHT
LGNIP02 M8X1 STRAIGHT
LGNIP03 M10X1 STRAIGHT
LGNIP04 M6X1 45
LGNIP05 M8X1 45
LGNIP06 M10X1 45
LGNIP07 M6X1 90
LGNIP08 M8X1 90
LGNIP09 M10X1 90

Drop Lock Pin

Drop Lock Pin

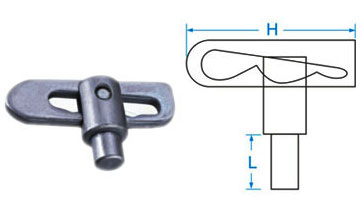

Drop Lock Pin Weld On Type
CODE DIA. L mm DIM. H mm
LDLP01 13 70
Drop Lock Pin

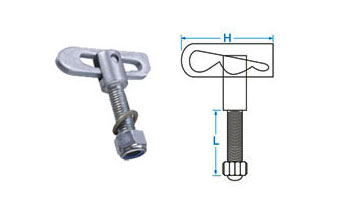

Drop Lock Pin With Long Screw
CODE DIA. L mm DIM. H mm Thread
LDLP02 35 70 1/2” UNF
LDLP03 76 70 1/2” UNF
LDLP04 38 50 MB x 1.25
LDLP05 20 50 MB x 1.25
